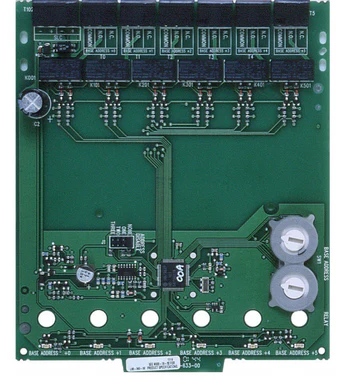

Notifier XP6-R Six Relay Control Module
General
NOTIFIER’s XP6-R six-relay control module provides an intelligent fire alarm system with six Form-C relays.
The first module is addressed from 01 to 154 while the remaining modules are automatically assigned to the next five higher addresses. Provisions are included for disabling a maximum of three unused modules. A single isolated set of dry relay contacts is provided for each module address, which is capable of being wired for either a normally-open or normally-closed operation. The module allows the control panel to switch these contacts on command. No supervision is provided for the controlled circuit.
Each XP6-R module has panel-controlled green LED indicators. The panel can cause the LEDs to blink, latch on, or latch off.
Features
• Six addressable Form-C relay contacts
• Removable 12 AWG (3.25 mm²) to 18 AWG (0.9 mm²)
plug-in terminal blocks
• Status indicators for each point
• Unused addresses may be disabled
• Rotary address switches
• FlashScan® or CLIP operation
• Mount one or two modules in a BB-XP cabinet (optional)
• Mount up to six modules on a CHS-6 chassis in a CAB-3
Series, CAB-4 Series, EQ Series, or BB-25 cabinet
(optional)
• Mounting hardware included
Specifications
Standby current: 1.45 mA (SLC current draw with all
addresses used; if some addresses are disabled, the
standby current decreases)
Alarm current: 32 mA (assumes all six relays have been
switched once and all six LEDs solid ON)
Temperature range: 32°F to 120°F (0°C to 49°C)
Humidity: 10% to 93% non-condensing
Dimensions: 6.8″ (17.27 cm) high x 5.8″ (14.73 cm) wide x
1.0″ (2.54 cm) deep
Shipping weight: 1.1 lb. (0.5 kg) including packaging
For more details about this Notifier XP6-R Six Relay Control Module, or any Notifier product, contact the Life Safety Consultants team at (866) 353-4420 or email us at : sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 6 × 1 in |
| Condition | New |
